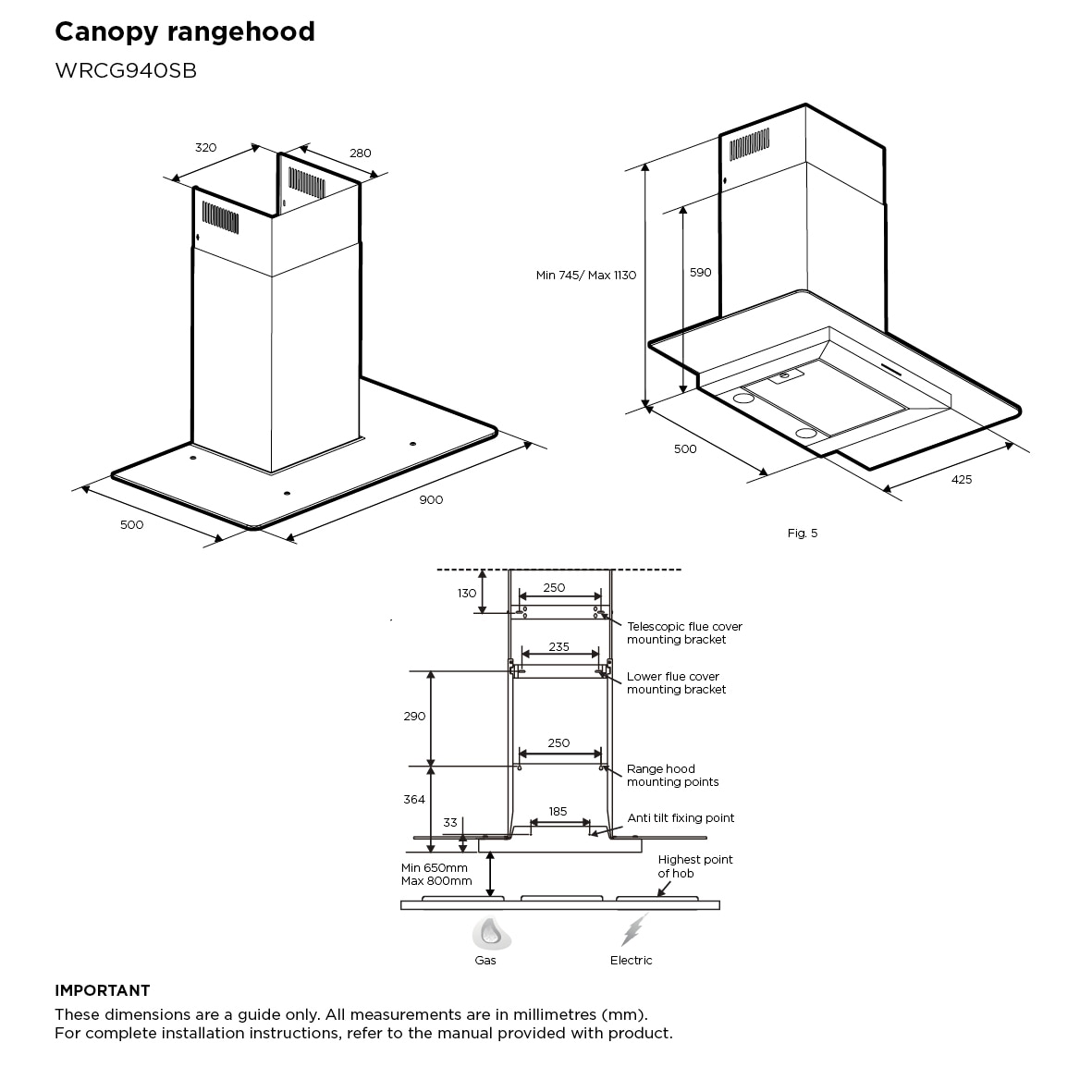

Dimension
- 1130 mm (H)
- 900 mm (W)
- 500 mm (D)
Commercial Exclusive
90cm Canopy rangehood, stainless steel
900W
x
500D
x
1130H(mm)
Wall Mounted Canopy
Fan
90cm stainless steel and flat glass canopy hood with 810 cubic m/h extraction on boost and LED lighting. ONLY AVAILABLE COMMERCIALLY.
Commercial Exclusive
90cm Canopy rangehood, stainless steel
Powerful Twin Blade centrifugal motor
The Cube houses a powerful twin blade motor to ensure maximum extraction of unwanted steam and vapours from cooking.
Conversation friendly noise levels
Enjoy cooking and conversation with a quieter motor delivering extraction without high noise levels.
Dishwasher Safe Aluminium micro-mesh filters
Simply remove the filter panels and wash in your dishwasher to maintain performance and appearance.
Low Energy with high levels of illumination
Delivering excellent illumination with cost conscious low energy use, as well as reducing the heat generated by the downlights.
Designed to have minimal seams and joins
By reducing the seams and joins in the stainless steel canopy, it is even easier to clean and keep looking great.
Features
Push button controls
Power Twin Blade centrifugal motor
Dishwasher Safe Aluminium micro-mesh filters
Low Energy/Long Life LED Globes
Stainless Steel finish
Specification
-
View full specification
Close full specification
Product profile
- Typewall mounted canopy
- Finishglass, stainless steel
- Domestic warranty details (yrs)2
- Nominal width (cm)900
Dimensions
- Total product height (mm)1130 mm
- Total product width (mm)900 mm
- Total product depth (mm)500 mm
- Diameter of ducting (mm)150
- Minimum installation height from cooking surface Gas (mm)650
- Minimum installation height from cooking surface Electric (mm)600
- Maximum canopy chimney height (mm)1130
- Flue cover depth (mm)280
- Flue cover width (mm)320
Motor/fan
- Number of fans1
- Number of fans speeds3
- Type of motorcentrifugal
- Maximum airflow M3/Hr810
- Noise level dB high69
- Noise level dB low52
- Auto offYes
Controls
- Control panelelectronic touch
- Safety/ display indicatorsautomatic safety cut off, clean filter indicator
- LED speed displayYes
Filters
- Number of filters1
- Type of filtermultilayer aluminum micromesh filters
Lights
- Number of lights2
- Wattage of light4
- Type of lightLED
Ducting / recirculation
- Ductingoptional accessory
- Top or rear duct holetop
- Recirculation optionYes
- Recirculation kitoptional accessory
- Front recirculating optionNo
- Type of filterCarbon
- FilterAR610CF
- Number of optional filters requiredtwo
- Ducting diameter (mm) 150
- Optional extension flueYes
- Ducting accessory availableAR610RK
